Skyline Stirrer

Name of Machine: Skyline Stirrer

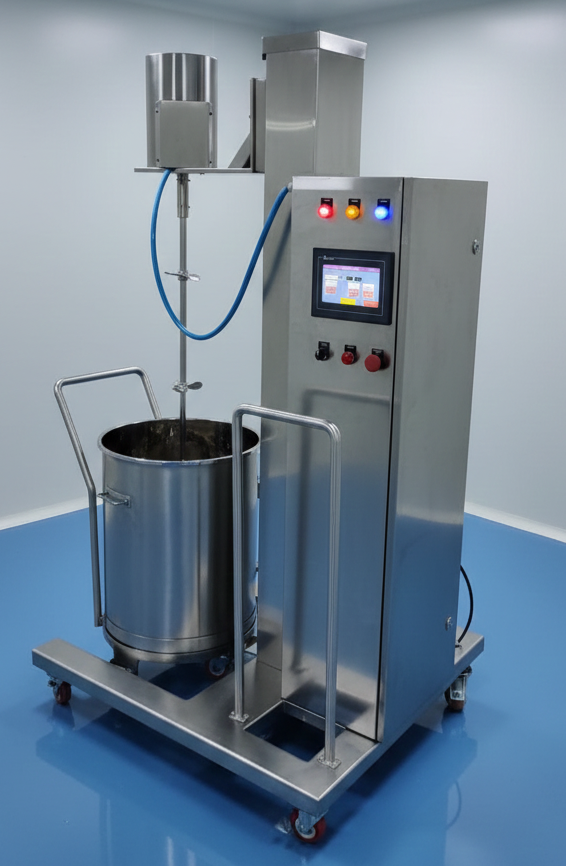

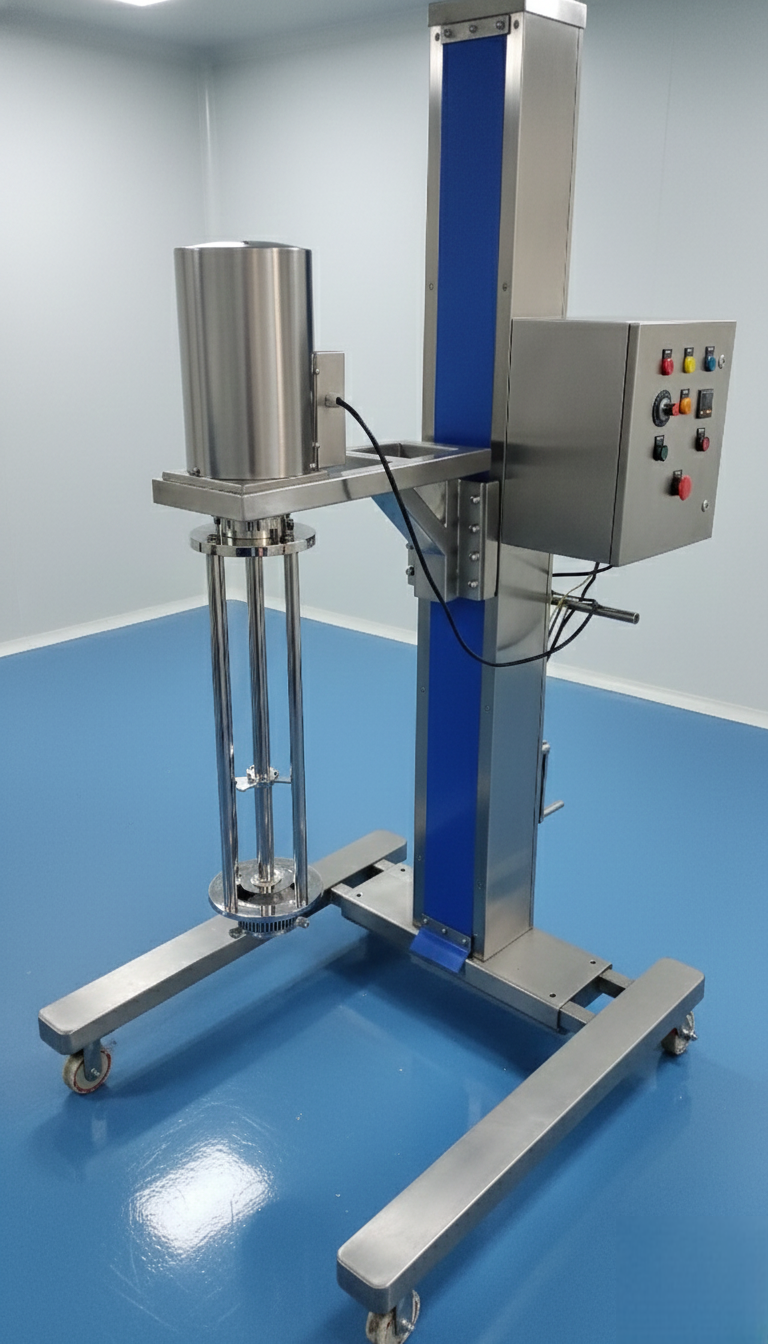

The Skyline Stirrer is designed for efficient mixing of liquid-in-liquid and solid-in-liquid applications using a top-entry propeller agitator. Engineered with a unique propeller design, it ensures optimal stirring performance by preventing particle settlement at the bottom of the vessel. The specialised impeller creates a strong vortex effect that enhances solubility and accelerates uniform dissolution of pharmaceutical binders in various solvents.

Salient Features

• Manual and Hydraulic Lifting Options available

• Mixing Capacity: 10 Litres. to 5000 Litres.

• Unique, high-efficiency design for optimum mixing performance

• Special propeller-type impeller engineered for superior stirring effect

• Non-Flameproof operating panel (Flameproof version optional)

• Contact parts: SS 316 construction

• Non-contact parts: SS 304 construction

• Easy to clean and maintain

• Lifting Height Range:

• Maximum: 800 mm from ground level to propeller

• Minimum: 250 mm from ground level to propeller

• Variable Frequency Drive (VFD) for adjustable stirrer speed
