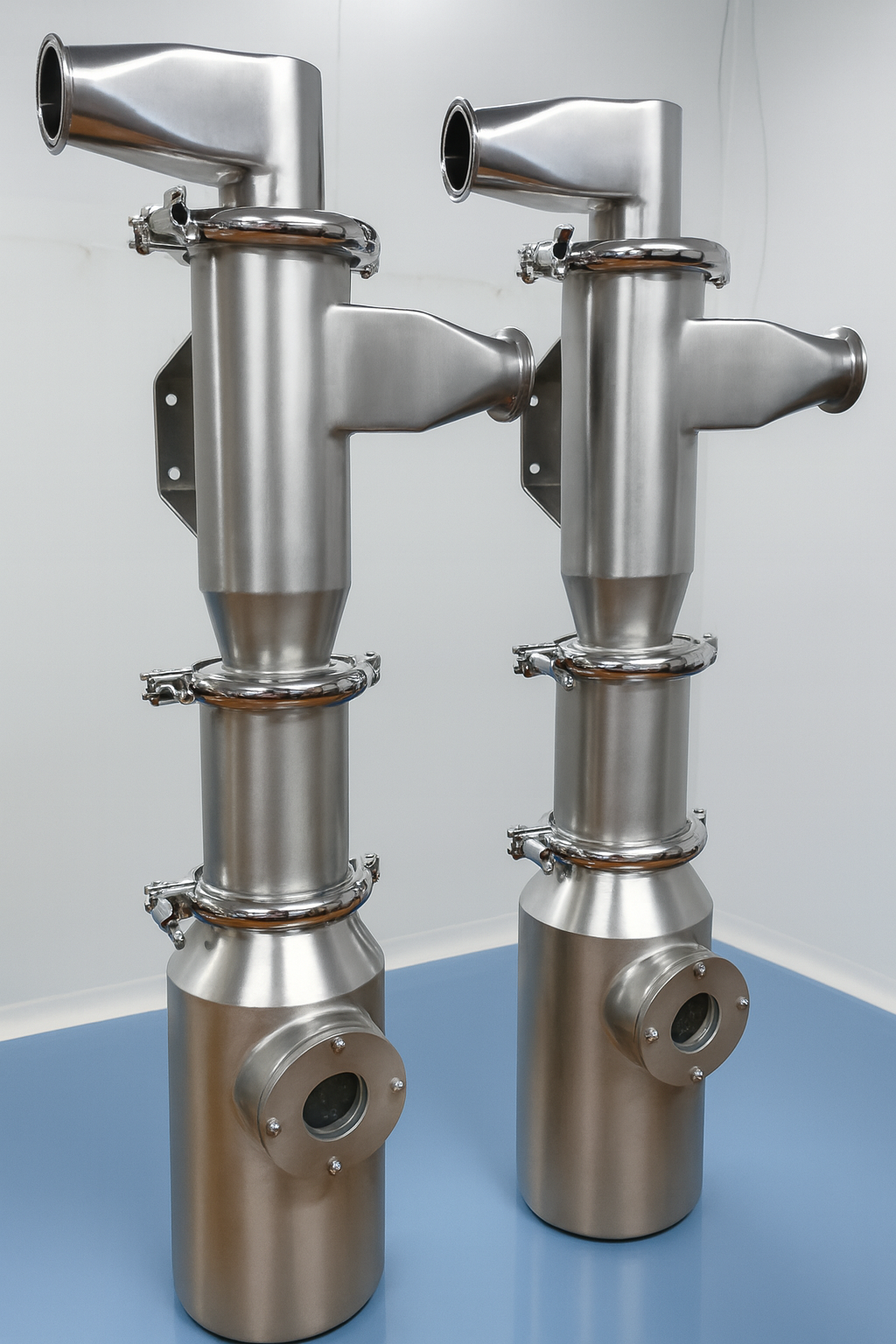

Skyline Dust Collection System with Cyclone Separator

Name of Machine: Skyline Dust Collection System with Cyclone Separator

A Dust Collection System with Cyclone Separator is an industrial air filtration solution designed to efficiently capture, separate, and collect airborne dust particles generated during material handling and process operations. The cyclone separator works as a primary filtration stage where dust-laden air enters tangentially, creating a centrifugal force that separates heavier particles from the air stream. The purified air then passes to the next filtration stage (HEPA/Bag filter/Cartridge filter) before being safely released or recirculated.
This system ensures a cleaner working environment, improved operator safety, reduced product loss, and compliance with industrial hygiene and regulatory standards (OSHA / GMP / cGMP).

Salient Features

• Two-Stage Filtration: Primary separation using cyclone separator followed by fine filtration (Bag/ Cartridge/ HEPA).

• High Dust Separation Efficiency: Cyclonic airflow enables removal of coarse to fine dust particles without clogging.

• Heavy-Duty and GMP-Compliant Design: Constructed with SS304 / SS316L or MS powder-coated depending on industrial requirement.

• Low Maintenance Operation: Cyclone separator minimizes filter loading, extending filter life and reducing operational cost.

• Continuous or Batch Collection: Dust can be collected in drums, bins, hoppers, or dust bags based on application.

• Plug-and-Play Installation: Modular skid-mounted design suitable for integration with existing equipment.

• Explosion-Proof (Optional): Suitable for flammable dust environments with ATEX-certified components.

• Noise-Reduced Blower System: High-performance motor with acoustic insulation (optional) for silent operation.

• Easy Cleaning & Filter Replacement: Tool-free access for cleaning and maintenance.
